오늘은 코로나 확진받고 열도 38.7까지 올라갔고 정신없는 하루인듯 합니다.
약과 해열제를 먹고나니 저녁에는 좀 괜찮아지네요
다시 KodeKloud CKS Challenge 네 접속했고, 지금까지의 마지막 단계 Challenge3 을 체크합니다.

(auditing 관련해서는 추가한 부분 색칠해놨어요)


이번에도 혹시라도 CKS 준비하시는분 있으시면 도움되시라고
- 실습환경 (무료) 링크 : https://kodekloud.com/courses/cks-challenges/
- 문제풀이 : yaml 및 Youtube
올립니다.



Challenge4 는 나중에 다시 올라오면 진행 예정이에요~



=============================================
# 여기에서 문제풀때 필요한 내용은
- kube-bench : 사용법
- kubelet : 컨피그 / staticPodPath / restart
- staticPod : kube-apiserver / etcd / kube-controller-manager / kube-scheduler
- kube-apiserver : auditing setting
였습니다.


# YouTube - KodeKloud : CKS - Challenge3 문제풀어가는 동영상 [ https://www.youtube.com/watch?v=f6dV9eVBOAc ]

1. CKS - Challenge3 문제

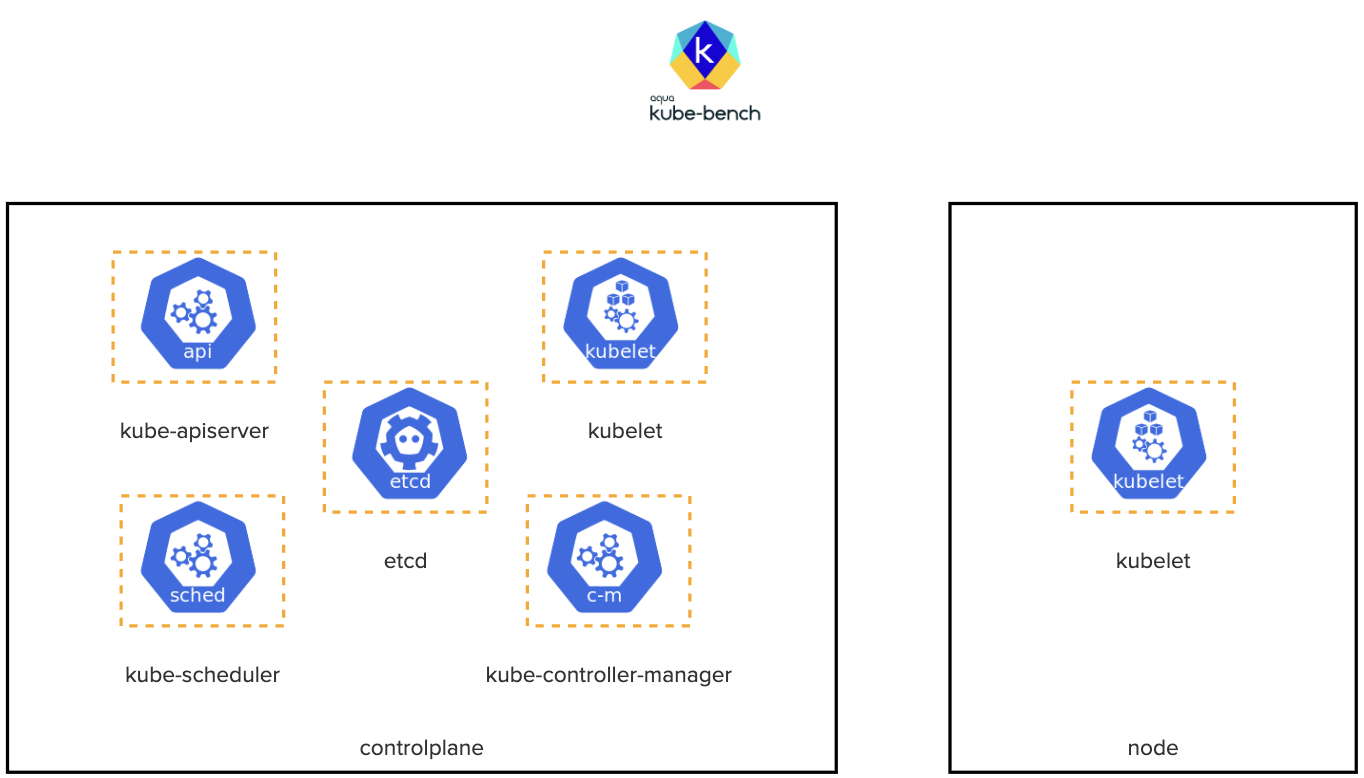

This is a two node kubernetes cluster. Using the kube-bench utility, identify and fix all the issues that were reported as failed for the controlplane and the worker node components.



Inspect the issues in detail by clicking on the icons of the interactive architecture diagram on the right and complete the tasks to secure the cluster. Once done click on the Check button to validate your work.



=============================================
Yaml 파일 (파일내용은 '더보기' 클릭)
=============================================

# [Command] 주요 커맨드
-------------------------------------------------------------

# kube-bench

./kube-bench run --config-dir /opt/cfg --config /opt/cfg/config.yaml > /var/www/html/index.html



# kubelet (Debian)

ps -ef |grep kubelet

systemctl restart kubelet



# crictl / docker

crictl ps

crictl ps -a

crictl logs <Container ID>

docker logs <Container ID>

-------------------------------------------------------------
# [StaticPod] etcd.yaml
-------------------------------------------------------------

apiVersion: v1
kind: Pod
metadata:
  annotations:
    kubeadm.kubernetes.io/etcd.advertise-client-urls: https://10.16.56.3:2379
  creationTimestamp: null
  labels:
    component: etcd
    tier: control-plane
  name: etcd
  namespace: kube-system
spec:
  containers:
  - command:
    - etcd
    - --advertise-client-urls=https://10.16.56.3:2379
    - --cert-file=/etc/kubernetes/pki/etcd/server.crt
    - --client-cert-auth=true
    - --data-dir=/var/lib/etcd
    - --initial-advertise-peer-urls=https://10.16.56.3:2380
    - --initial-cluster=controlplane=https://10.16.56.3:2380
    - --key-file=/etc/kubernetes/pki/etcd/server.key
    - --listen-client-urls=https://127.0.0.1:2379,https://10.16.56.3:2379
    - --listen-metrics-urls=http://127.0.0.1:2381
    - --listen-peer-urls=https://10.16.56.3:2380
    - --name=controlplane
    - --peer-cert-file=/etc/kubernetes/pki/etcd/peer.crt
    - --peer-client-cert-auth=true
    - --peer-key-file=/etc/kubernetes/pki/etcd/peer.key
    - --peer-trusted-ca-file=/etc/kubernetes/pki/etcd/ca.crt
    - --snapshot-count=10000
    - --trusted-ca-file=/etc/kubernetes/pki/etcd/ca.crt
    image: k8s.gcr.io/etcd:3.5.1-0
    imagePullPolicy: IfNotPresent
    livenessProbe:
      failureThreshold: 8
      httpGet:
        host: 127.0.0.1
        path: /health
        port: 2381
        scheme: HTTP
      initialDelaySeconds: 10
      periodSeconds: 10
      timeoutSeconds: 15
    name: etcd
    resources:
      requests:
        cpu: 100m
        memory: 100Mi
    startupProbe:
      failureThreshold: 24
      httpGet:
        host: 127.0.0.1
        path: /health
        port: 2381
        scheme: HTTP
      initialDelaySeconds: 10
      periodSeconds: 10
      timeoutSeconds: 15
    volumeMounts:
    - mountPath: /var/lib/etcd
      name: etcd-data
    - mountPath: /etc/kubernetes/pki/etcd
      name: etcd-certs
  hostNetwork: true
  priorityClassName: system-node-critical
  securityContext:
    seccompProfile:
      type: RuntimeDefault
  volumes:
  - hostPath:
      path: /etc/kubernetes/pki/etcd
      type: DirectoryOrCreate
    name: etcd-certs
  - hostPath:
      path: /var/lib/etcd
      type: DirectoryOrCreate
    name: etcd-data
status: {}

-------------------------------------------------------------
# [StaticPod] kube-apiserver.yaml
-------------------------------------------------------------

apiVersion: v1
kind: Pod
metadata:
  annotations:
    kubeadm.kubernetes.io/kube-apiserver.advertise-address.endpoint: 10.16.56.3:6443
  creationTimestamp: null
  labels:
    component: kube-apiserver
    tier: control-plane
  name: kube-apiserver
  namespace: kube-system
spec:
  containers:
  - command:
    - kube-apiserver
    - --advertise-address=10.16.56.3
    - --allow-privileged=true
    - --profiling=false
    - --insecure-port=0
    - --audit-log-path=/var/log/apiserver/audit.log
    - --audit-log-maxage=30
    - --audit-log-maxbackup=10
    - --audit-log-maxsize=100
    - --authorization-mode=Node,RBAC
    - --client-ca-file=/etc/kubernetes/pki/ca.crt
    - --enable-admission-plugins=NodeRestriction,PodSecurityPolicy
    - --enable-bootstrap-token-auth=true
    - --etcd-cafile=/etc/kubernetes/pki/etcd/ca.crt
    - --etcd-certfile=/etc/kubernetes/pki/apiserver-etcd-client.crt
    - --etcd-keyfile=/etc/kubernetes/pki/apiserver-etcd-client.key
    - --etcd-servers=https://127.0.0.1:2379
    - --kubelet-client-certificate=/etc/kubernetes/pki/apiserver-kubelet-client.crt
    - --kubelet-client-key=/etc/kubernetes/pki/apiserver-kubelet-client.key
    - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
    - --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.crt
    - --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client.key
    - --requestheader-allowed-names=front-proxy-client
    - --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.crt
    - --requestheader-extra-headers-prefix=X-Remote-Extra-
    - --requestheader-group-headers=X-Remote-Group
    - --requestheader-username-headers=X-Remote-User
    - --secure-port=6443
    - --service-account-issuer=https://kubernetes.default.svc.cluster.local
    - --service-account-key-file=/etc/kubernetes/pki/sa.pub
    - --service-account-signing-key-file=/etc/kubernetes/pki/sa.key
    - --service-cluster-ip-range=10.96.0.0/12
    - --tls-cert-file=/etc/kubernetes/pki/apiserver.crt
    - --tls-private-key-file=/etc/kubernetes/pki/apiserver.key
    image: k8s.gcr.io/kube-apiserver:v1.23.0
    imagePullPolicy: IfNotPresent
    livenessProbe:
      failureThreshold: 8
      httpGet:
        host: 10.16.56.3
        path: /livez
        port: 6443
        scheme: HTTPS
      initialDelaySeconds: 10
      periodSeconds: 10
      timeoutSeconds: 15
    name: kube-apiserver
    readinessProbe:
      failureThreshold: 3
      httpGet:
        host: 10.16.56.3
        path: /readyz
        port: 6443
        scheme: HTTPS
      periodSeconds: 1
      timeoutSeconds: 15
    resources:
      requests:
        cpu: 250m
    startupProbe:
      failureThreshold: 24
      httpGet:
        host: 10.16.56.3
        path: /livez
        port: 6443
        scheme: HTTPS
      initialDelaySeconds: 10
      periodSeconds: 10
      timeoutSeconds: 15
    volumeMounts:
    - mountPath: /etc/ssl/certs
      name: ca-certs
      readOnly: true
    - mountPath: /etc/ca-certificates
      name: etc-ca-certificates
      readOnly: true
    - mountPath: /etc/kubernetes/pki
      name: k8s-certs
      readOnly: true
    - mountPath: /usr/local/share/ca-certificates
      name: usr-local-share-ca-certificates
      readOnly: true
    - mountPath: /usr/share/ca-certificates
      name: usr-share-ca-certificates
      readOnly: true
    - mountPath: /var/log/apiserver/
      name: audit-log
      readOnly: false
  hostNetwork: true
  priorityClassName: system-node-critical
  securityContext:
    seccompProfile:
      type: RuntimeDefault
  volumes:
  - hostPath:
      path: /etc/ssl/certs
      type: DirectoryOrCreate
    name: ca-certs
  - hostPath:
      path: /etc/ca-certificates
      type: DirectoryOrCreate
    name: etc-ca-certificates
  - hostPath:
      path: /etc/kubernetes/pki
      type: DirectoryOrCreate
    name: k8s-certs
  - hostPath:
      path: /usr/local/share/ca-certificates
      type: DirectoryOrCreate
    name: usr-local-share-ca-certificates
  - hostPath:
      path: /usr/share/ca-certificates
      type: DirectoryOrCreate
    name: usr-share-ca-certificates
  - name: audit-log
    hostPath:
      path: /var/log/apiserver/
      type: DirectoryOrCreate
status: {}

-------------------------------------------------------------
# [StaticPod] kube-controller-manager.yaml
-------------------------------------------------------------

apiVersion: v1
kind: Pod
metadata:
  creationTimestamp: null
  labels:
    component: kube-controller-manager
    tier: control-plane
  name: kube-controller-manager
  namespace: kube-system
spec:
  containers:
  - command:
    - kube-controller-manager
    - --allocate-node-cidrs=true
    - --authentication-kubeconfig=/etc/kubernetes/controller-manager.conf
    - --authorization-kubeconfig=/etc/kubernetes/controller-manager.conf
    - --bind-address=127.0.0.1
    - --profiling=false
    - --client-ca-file=/etc/kubernetes/pki/ca.crt
    - --cluster-cidr=10.244.0.0/16
    - --cluster-name=kubernetes
    - --cluster-signing-cert-file=/etc/kubernetes/pki/ca.crt
    - --cluster-signing-key-file=/etc/kubernetes/pki/ca.key
    - --controllers=*,bootstrapsigner,tokencleaner
    - --kubeconfig=/etc/kubernetes/controller-manager.conf
    - --leader-elect=true
    - --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.crt
    - --root-ca-file=/etc/kubernetes/pki/ca.crt
    - --service-account-private-key-file=/etc/kubernetes/pki/sa.key
    - --service-cluster-ip-range=10.96.0.0/12
    - --use-service-account-credentials=true
    image: k8s.gcr.io/kube-controller-manager:v1.23.0
    imagePullPolicy: IfNotPresent
    livenessProbe:
      failureThreshold: 8
      httpGet:
        host: 127.0.0.1
        path: /healthz
        port: 10257
        scheme: HTTPS
      initialDelaySeconds: 10
      periodSeconds: 10
      timeoutSeconds: 15
    name: kube-controller-manager
    resources:
      requests:
        cpu: 200m
    startupProbe:
      failureThreshold: 24
      httpGet:
        host: 127.0.0.1
        path: /healthz
        port: 10257
        scheme: HTTPS
      initialDelaySeconds: 10
      periodSeconds: 10
      timeoutSeconds: 15
    volumeMounts:
    - mountPath: /etc/ssl/certs
      name: ca-certs
      readOnly: true
    - mountPath: /etc/ca-certificates
      name: etc-ca-certificates
      readOnly: true
    - mountPath: /usr/libexec/kubernetes/kubelet-plugins/volume/exec
      name: flexvolume-dir
    - mountPath: /etc/kubernetes/pki
      name: k8s-certs
      readOnly: true
    - mountPath: /etc/kubernetes/controller-manager.conf
      name: kubeconfig
      readOnly: true
    - mountPath: /usr/local/share/ca-certificates
      name: usr-local-share-ca-certificates
      readOnly: true
    - mountPath: /usr/share/ca-certificates
      name: usr-share-ca-certificates
      readOnly: true
  hostNetwork: true
  priorityClassName: system-node-critical
  securityContext:
    seccompProfile:
      type: RuntimeDefault
  volumes:
  - hostPath:
      path: /etc/ssl/certs
      type: DirectoryOrCreate
    name: ca-certs
  - hostPath:
      path: /etc/ca-certificates
      type: DirectoryOrCreate
    name: etc-ca-certificates
  - hostPath:
      path: /usr/libexec/kubernetes/kubelet-plugins/volume/exec
      type: DirectoryOrCreate
    name: flexvolume-dir
  - hostPath:
      path: /etc/kubernetes/pki
      type: DirectoryOrCreate
    name: k8s-certs
  - hostPath:
      path: /etc/kubernetes/controller-manager.conf
      type: FileOrCreate
    name: kubeconfig
  - hostPath:
      path: /usr/local/share/ca-certificates
      type: DirectoryOrCreate
    name: usr-local-share-ca-certificates
  - hostPath:
      path: /usr/share/ca-certificates
      type: DirectoryOrCreate
    name: usr-share-ca-certificates
status: {}

-------------------------------------------------------------
# [StaticPod] kube-scheduler.yaml
-------------------------------------------------------------

apiVersion: v1
kind: Pod
metadata:
  creationTimestamp: null
  labels:
    component: kube-scheduler
    tier: control-plane
  name: kube-scheduler
  namespace: kube-system
spec:
  containers:
  - command:
    - kube-scheduler
    - --authentication-kubeconfig=/etc/kubernetes/scheduler.conf
    - --authorization-kubeconfig=/etc/kubernetes/scheduler.conf
    - --bind-address=127.0.0.1
    - --kubeconfig=/etc/kubernetes/scheduler.conf
    - --leader-elect=true
    - --profiling=false
    image: k8s.gcr.io/kube-scheduler:v1.23.0
    imagePullPolicy: IfNotPresent
    livenessProbe:
      failureThreshold: 8
      httpGet:
        host: 127.0.0.1
        path: /healthz
        port: 10259
        scheme: HTTPS
      initialDelaySeconds: 10
      periodSeconds: 10
      timeoutSeconds: 15
    name: kube-scheduler
    resources:
      requests:
        cpu: 100m
    startupProbe:
      failureThreshold: 24
      httpGet:
        host: 127.0.0.1
        path: /healthz
        port: 10259
        scheme: HTTPS
      initialDelaySeconds: 10
      periodSeconds: 10
      timeoutSeconds: 15
    volumeMounts:
    - mountPath: /etc/kubernetes/scheduler.conf
      name: kubeconfig
      readOnly: true
  hostNetwork: true
  priorityClassName: system-node-critical
  securityContext:
    seccompProfile:
      type: RuntimeDefault
  volumes:
  - hostPath:
      path: /etc/kubernetes/scheduler.conf
      type: FileOrCreate
    name: kubeconfig
status: {}

-------------------------------------------------------------
# [kubelet] /var/lib/kubelet/config.yaml
-------------------------------------------------------------

apiVersion: kubelet.config.k8s.io/v1beta1
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 0s
    enabled: true
  x509:
    clientCAFile: /etc/kubernetes/pki/ca.crt
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 0s
    cacheUnauthorizedTTL: 0s
cgroupDriver: systemd
clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
cpuManagerReconcilePeriod: 0s
evictionPressureTransitionPeriod: 0s
fileCheckFrequency: 0s
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 0s
imageMinimumGCAge: 0s
kind: KubeletConfiguration
logging:
  flushFrequency: 0
  options:
    json:
      infoBufferSize: "0"
  verbosity: 0
memorySwap: {}
nodeStatusReportFrequency: 0s
nodeStatusUpdateFrequency: 0s
resolvConf: /run/systemd/resolve/resolv.conf
rotateCertificates: true
runtimeRequestTimeout: 0s
shutdownGracePeriod: 0s
shutdownGracePeriodCriticalPods: 0s
staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 0s
syncFrequency: 0s
volumeStatsAggPeriod: 0s
protectKernelDefaults: true

-------------------------------------------------------------
